Product Summary

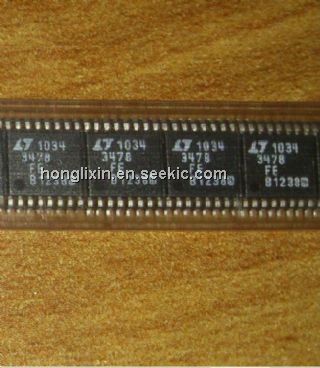

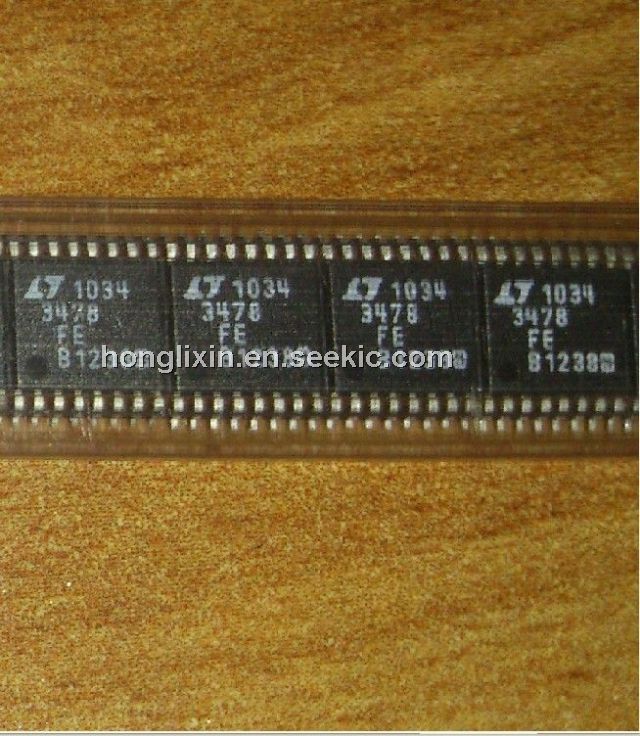

The LT3478EFE#PBF is a 4.5A monolithic LED driver with true color PWM dimming. Its applications include high power LED driver, automotive lighting. It reduces external component count and cost by integrating the LED current sense resistor.
Parametrics
LT3478EFE#PBF absolute maximum ratings: (1)SW: 42V; (2)VOUT: 42V; (3)PWM: 15V; (4)operating junction temperature range: -40 to 125℃; (5)storage temperature range: -65 to 150℃; (6)lead temperature: 300℃.
Features
LT3478EFE#PBF features: (1)inrush current protection; (2)programmable soft-start; (3)open LED protection; (4)16-pin thermally enhanced TSSOP package; (5)accurate shutdown/UVLO threshold with programmable hysteresis.

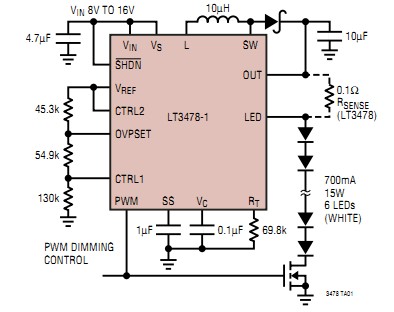

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT3478EFE#PBF |
|
IC LED DRVR HP CONS CURR 16TSSOP |
Data Sheet |
|
|
||||||||||
